Bicycle Brake Wire KYNAR Heat Shrink sleeving

  • Bicycle Brake Wire KYNAR Heat Shrink sleeving
  • Bicycle Brake Wire KYNAR Heat Shrink sleeving
  • Bicycle Brake Wire KYNAR Heat Shrink sleeving
  • Bicycle Brake Wire KYNAR Heat Shrink sleeving

Bicycle Brake Wire KYNAR Heat Shrink sleeving

    Payment Type: L/C,T/T,Paypal,Western Union
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1000 Meter
    Delivery Time: 18 Days
    Packaging: Standard&according to customer's required
    Productivity: 1000000
    Brand: KEYUACE
    Transportation: Ocean,Air
    Place of Origin: China
    Supply Ability: 100000
    Certificate: SGS
    Port: YanTian,Shenzhen

Basic Info

Model No.: KY-PVDF

Product Description

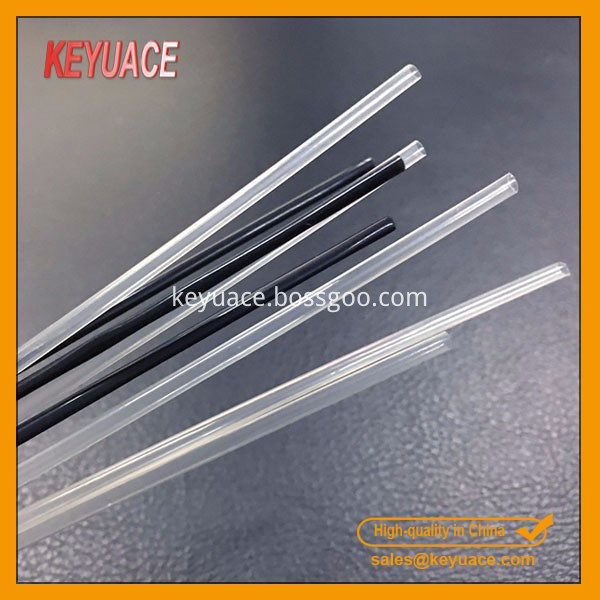

Bicycle Brake Wire Kynar PVDF Heat Shrink Tubing/Motorcycle brake wire KYNAR Heat Shrinkable tube

Product Description

Motorcycle brake wire KYNAR Heat Shrinkable tube, Bicycle Brake Wire KYNAR Heat Shrink Tube is made of irradiation cross-linked special fluorine polymer PVDF ( polyvinylidene fluoride ). PVDF Wear-resistant heat-shrinkable tube, Car backstay Heat shrinkable tube with the advantages to transparency, flame resistance, high temperature resistance, chemical corrosion resistance, solvent resistance, cutting resistance, and so on. PVDF Heat shrinkable tube it mainly applies to motorcycle cable, automobile cables, brake lines, cables and electronic component for insulation protection. Friction resistant heat shrinkable tube , Durability Temperature Resistant, It`s also widely used in chemical equipment industry.

Features & Benefits:
1, quite thin wall, shrink ratio: 2:1, 3:1
2, High flame resistance: VW-1
3, Superior to tenacity, physical properties and chemical corrosion resistance
4, Withstand 600V

Product Description

Pvdf Thin Wall Flexible Tubing


Product Property

Performance requirements

Test method

Test Date

Tensile strength

34.5Mpa min

ASTM D 2671

≥35MPa

Elongation

200% min

ASTM D 638

≥200%

Heat shock 275℃,4hrs

No cracking,
dripping or flowing

ASTM D 2671

Pass

Low temperature flexibility -55℃, 4hrs

No cracking

ASTM D 2671

Pass

Elongation after aging

100%

ASTM D 638

≥100%

Dielectric voltage
withstand

2500V.,60sec,no breakdown

ASTM D 2671

Pass

Volume resistivity

1014Ω.cm min

ASTMD876

≥1014Ω.cm

Corrosion

No corrosion

ASTM D 2671

Pass

Flammability

VW-1

≥UL 224

Pass

Product Dimensions

Part Number

Nominal Size(mm)

As supplied(mm)

After recovered (mm)

Standard Packing
(M/Roll)

(mm)

(inch)

D(min)
Inner diameter

D (max)
Inner diameter

t Wall thickness

KY150-012

1.2

3/64

1.2

0.6

0.25±0.05

1.2 / 100

KY150-016

1.6

1/16

1.6

0.8

0.25±0.05

1.2 / 100

KY150-024

2.4

3/32

2.4

1.2

0.25±0.05

1.2 / 100

KY150-032

3.2

1/8

3.2

1.6

0.25±0.05

1.2 / 100

KY150-048

4.8

3/16

4.8

2.4

0.25±0.05

1.2 / 100

KY150-064

6.4

1/4

6.4

3.2

0.30±0.08

1.2 / 100

KY150-095

9.5

3/8

9.5

4.8

0.30±0.08

1.2 / 100

KY150-127

12.7

1/2

12.7

6.4

0.30±0.08

1.2 / 100

KY150-191

19.1

3/4

19.1

9.5

0.43±0.08

1.2 / 100

KY150-254

25.4

1

25.4

12.7

0.48±0.08

1.2 / 100

KY150-381

38.1

11/2

38.1

19

0.51±0.08

1.2

KY150-508

50.8

2

50.8

25.4

0.58±0.08

1.2

Colors: Black, transparent, red and blue
Pointed is availabe according to customers' requests.
